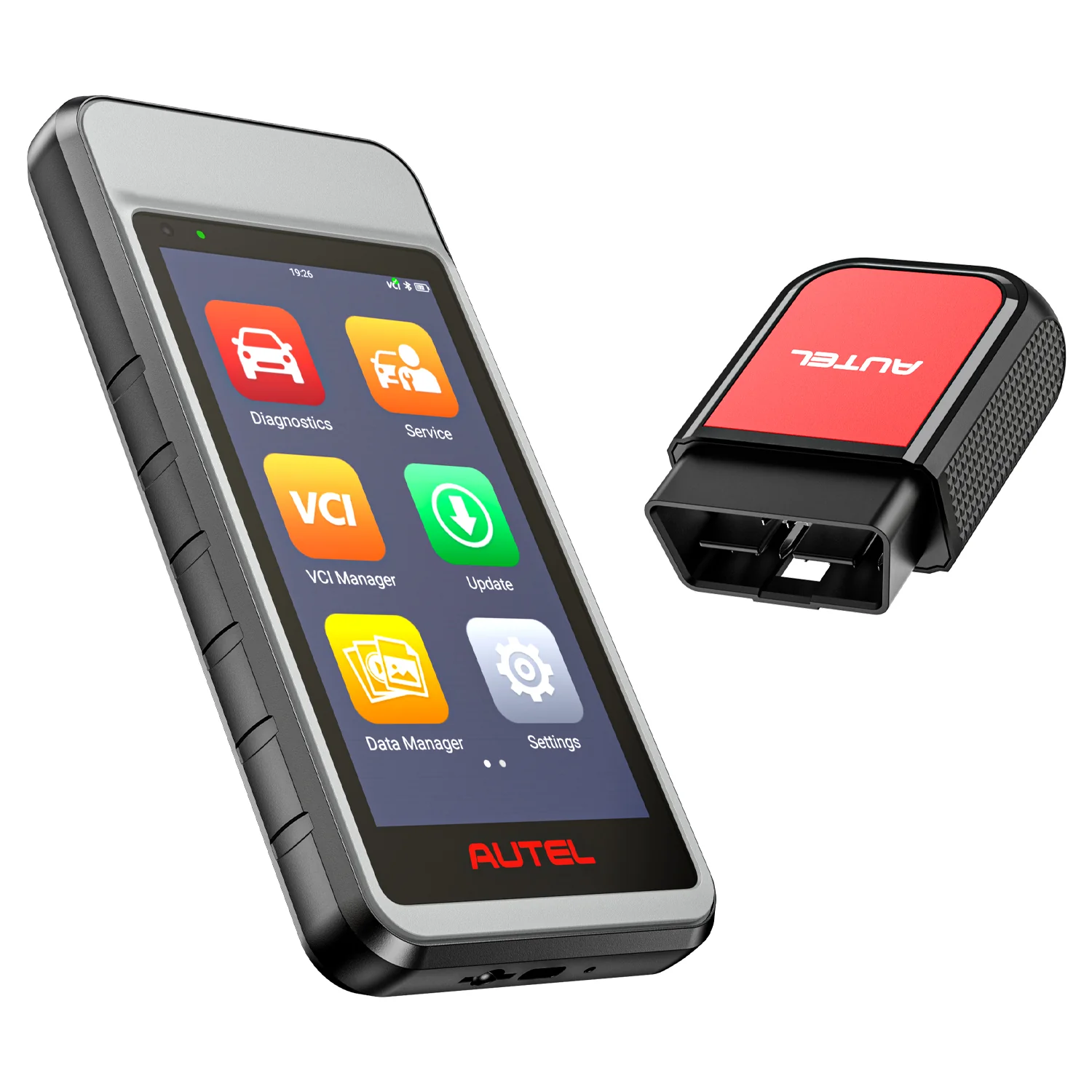

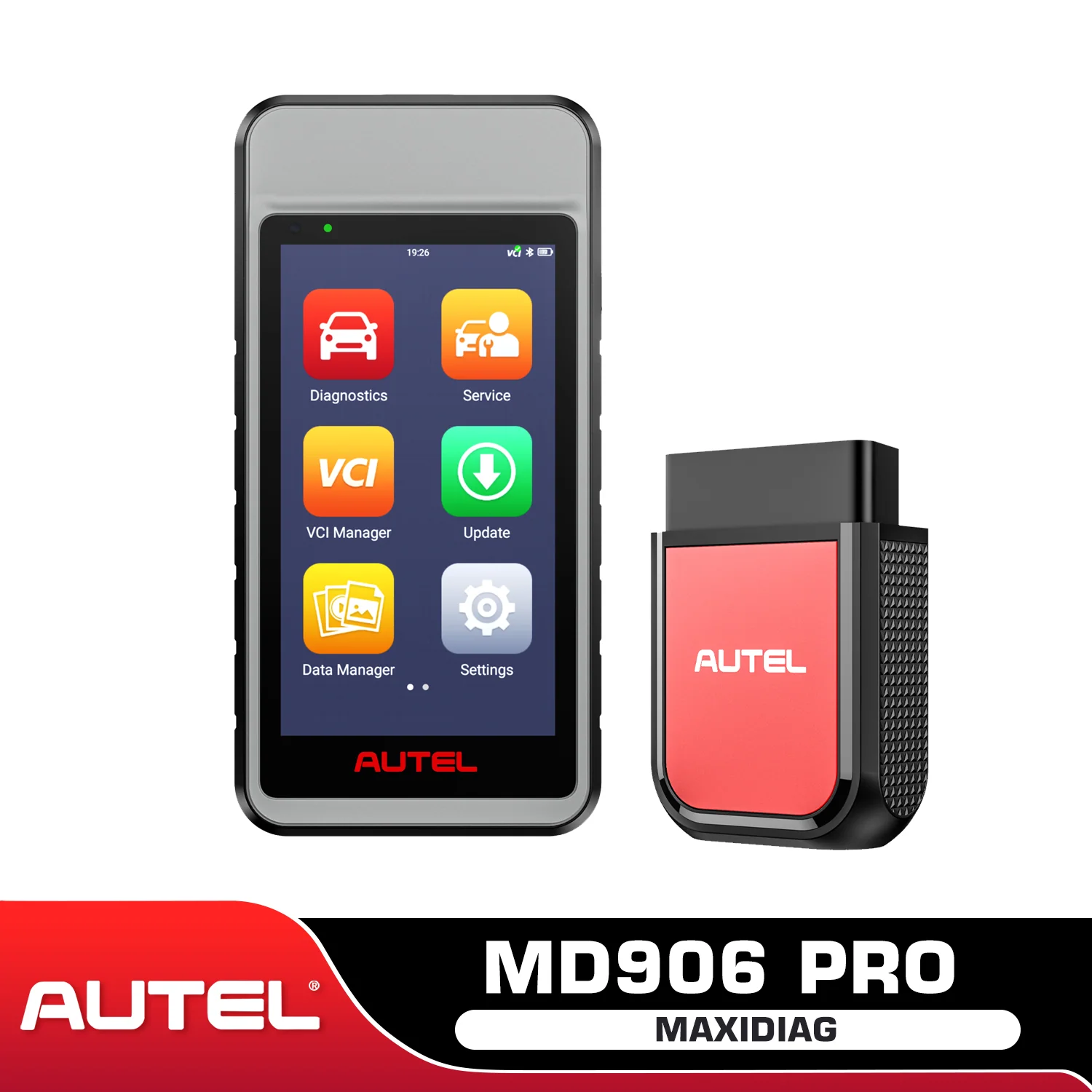

Autel MaxiDiag MD906 PRO Full System Diagnostic Scan Tool

The MaxiDiag MD906 Pro is engineered to take your diagnostic experience to the next level. It functions as an all-systems scanner with a rich set of service features, including oil service reset, battery registration and reset, parking brake pad relearn after replacement, steering angle sensor calibration, and diesel particulate filter regeneration. With the ability to access all available control modules, the MD906 Pro ensures comprehensive and precise diagnostics for a wide range of vehicles.

Autel MaxiDiag MD906 PRO Full System Diagnostic Scan Tool

Autel MaxiDiag MD906 PRO Features

Lifetime Free Updates: Autel MaxiDiag MD906 PRO offers lifetime free updates, making it a cost-effective choice compared to tablet-based scanners. Ideal for DIYers and small shops looking for advanced diagnostics without ongoing costs. (Note: Unlike other MD models, the MD906 PRO supports diagnostics on the newest vehicles)
11 Hot Service Functions: The MD906 PRO supports 11 essential service functions, including Oil Reset, Brake Bleeding, Injector Coding, SAS Calibration, EPB, DPF Regeneration and more — providing everything you need for everyday vehicle maintenance.
All System Diagnosis: The Autel MD906 PRO is a handheld device that provides full-system diagnostics, allowing you to read and clear codes, view live data, and access all major ECUs including engine, transmission, ABS, SRS, and more.
Support CAN FD Protocol: The Autel MD906 PRO is equipped with CAN FD protocol support, allowing it to communicate with the latest vehicle models — especially 2020 and newer GM, and other modern makes.
Security Gateway Access: MD906 PRO allows access to FCA and SFD protected systems, but unlocking these secure gateways requires an additional paid subscription.
Auto VIN Scan: The MaxiDiag MD906 PRO tool features the latest VIN-based Auto VIN Scan function to identify vehicles, scan all the diagnosable ECUs, and run diagnostics on the selected system.
Auto Scan: The Auto Scan function performs a comprehensive scan of all the vehicle's ECUs to locate system faults and retrieve DTCs.
Extensive Functions: Data Manager; Test Records; Report Cloud Sharing; WIFI Print, etc.
Advanced Hardware: What sets the MD906 PRO apart from other MD series models is its touchscreen capability, allowing for quicker and easier operation.
One Year Free Warranty

Enhanced All System Diagnostics and Service Functions

Extensive and current year vehicle coverage for U.S., Asian, and European vehicle makes, access to all modules in all systems
Enhanced Mode 6 diagnostics, all system AutoScan DTCs detection, reads & clears codes, views live and freezes frame data
Support 11 service functions: OIL RESET, BREAK BLEEDING, INJECTOR, SAS, THROTTLE, EPB, BMS, TPMS, DPF, AFS Headlamp, A/F
Support OBDII protocols & all 10 OBDII test modes, perform I/M Readiness/ Emissions testing function

Enhanced All System Diagnostics and Service Functions

Outstanding Hardware, Faster Operation

5.5-inch screen, 64G storage, Android-based platform, deliver user-friendly interface
5,000mAh battery, deliver long battery-life
Bluetooth connectivity of VCI, more convenient in handheld operation scenarios

Advanced, expandable & cost-effective handheld system for DIY automotive maintenance sector

Support CAN FD communication protocol, compatible with advanced automotive systems
Access automakers security gateways, such as FCA, SFD, etc.* (You need to purchase separately)
Free lifetime OTA software updates, cost-effective handheld solution

11 Hot Service Functions

Autel MD906 Pro covers 11 key service functions: Oil Reset, Brake Bleeding, Injector Coding, SAS Calibration, Throttle Adaptation, EPB, BMS, TPMS, DPF Regeneration, AFS Headlamp, and Air-Fuel Ratio (A/F) Adjustment. These essential features ensure reliable maintenance support for modern vehicles across various makes and models.

Oil Reset: Reset the oil life systems every time the oil and oil filter are changed.
EPB(Electric Parking Brake): Maintain the electronic braking system safely and effectively.
BMS: Evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, activate the rest state of the vehicle, and charge the battery via the diagnostic socket.
DPF: Manages DPF regeneration, DPF component replacement teach-in, and DPF teach-in after replacing the engine control unit.
SAS: Permanently stores the current steering wheel position as the straight-ahead position in the steering angle sensor EEPROM.
Injector Coding: Code new injector numbers to replace the previous one when fitting the new injectors or after the replacement is completed.
Brake Bleeding: It serves for the aid bleeding in the brake system to achieve proper brake performances of the ABS System.

Specifications

Item	Description	MD906PRO
Hardware	VCI	V150 Lite
	System	Android 9
	Battery	5000mAh
	Storage	64G
	Screen	5.5-inch
Function	Vehicle Coverage	Current year vehicle of Asia, Europe, America, China
	System Coverage	All
	Read/ Erase Code	●
	Live Data	●
	Security Gateway	FCA, SFD, etc.
Service	OIL RESET	●
	BREAK BLEEDING	●
	INJECTOR	●
	SAS	●
	THROTTLE	●
	EPB	●
	BMS	●
	TPMS	●
	DPF	●
	AFS Headlamp	●
	A/F	●
Communication Protocol	CAN FD	●
Software	FREE Lifetime Software	lifetime of tool

Comparison Table

Feature	Autel MD806 Pro	Autel MD906 Pro
Price	Budget-friendly	Mid-range
Display	4.0" non-touch	5.5" HD touchscreen
Wireless Capability	No	Yes (VCI V150 Lite)
CAN FD & DoIP	No	Yes
Service Functions	Standard (Oil, EPB, SAS, DPF)	Advanced (AFS, Injector, Brake Bleeding)
Battery	N/A	Built-in 5000mAh

Autel MD906 PRO Packing List

1x MD906 PRO Main Unit
1x MaxiVCI V150 Lite
1x Power Adapter
1x USB Type-C Cable
1x Quick Reference Guide
1x Packaging BOX

MaxiDiag MD906 PRO Product guides and documents

MaxiDiag MD906 PRO Quick Guide

MaxiDiag MD906 PRO User Manual
